Product ID
22108
Category
Combination Sewer Cleaner
Model
MAK COMBI 180/C
Equipment
| Make | Vakoom |
| Type | Combination Sewer Cleaner |
Tank
| Made | In AISI 304 stainless steel |
| Version | With stainless steel external tanks for fresh water |
| Sludge Capacity | 7.000 litres |
| Water Capacity | 3.200 litres |

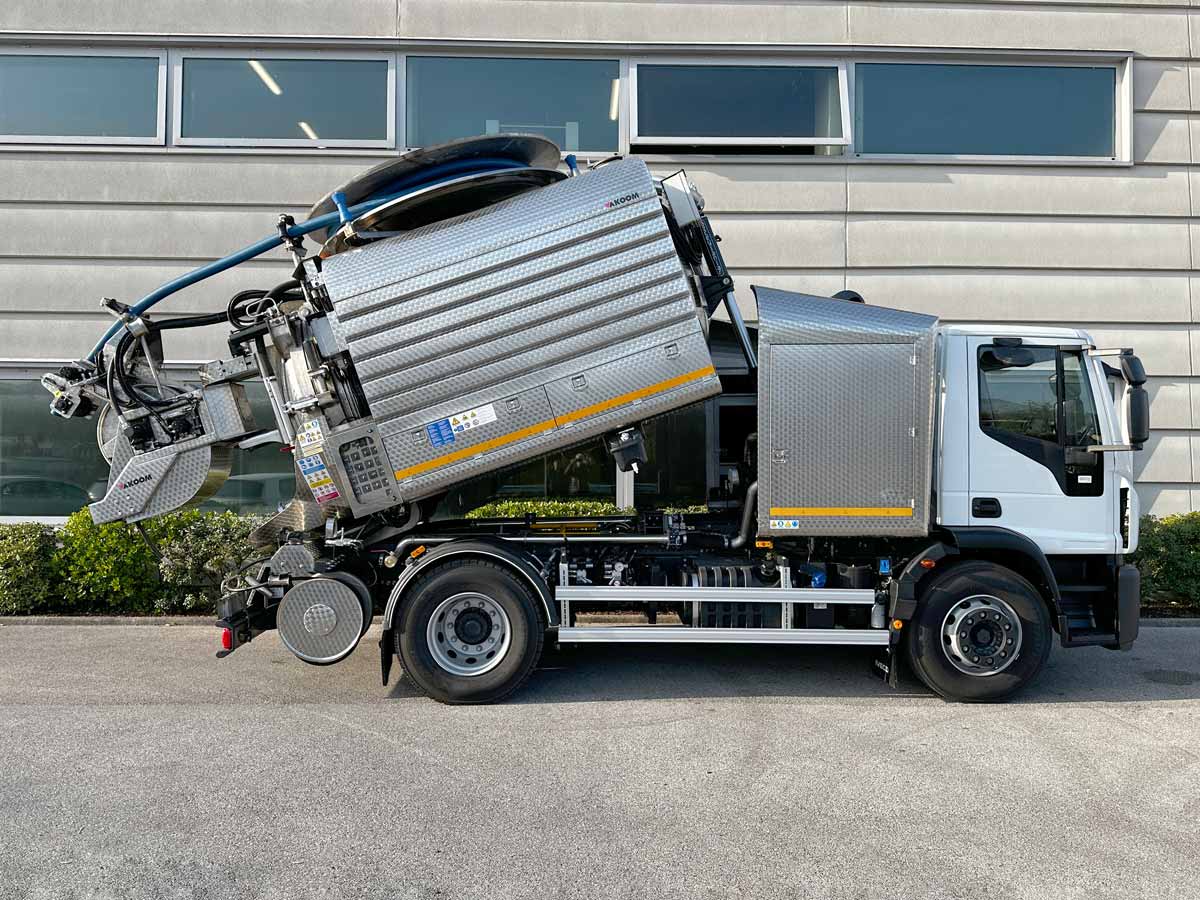

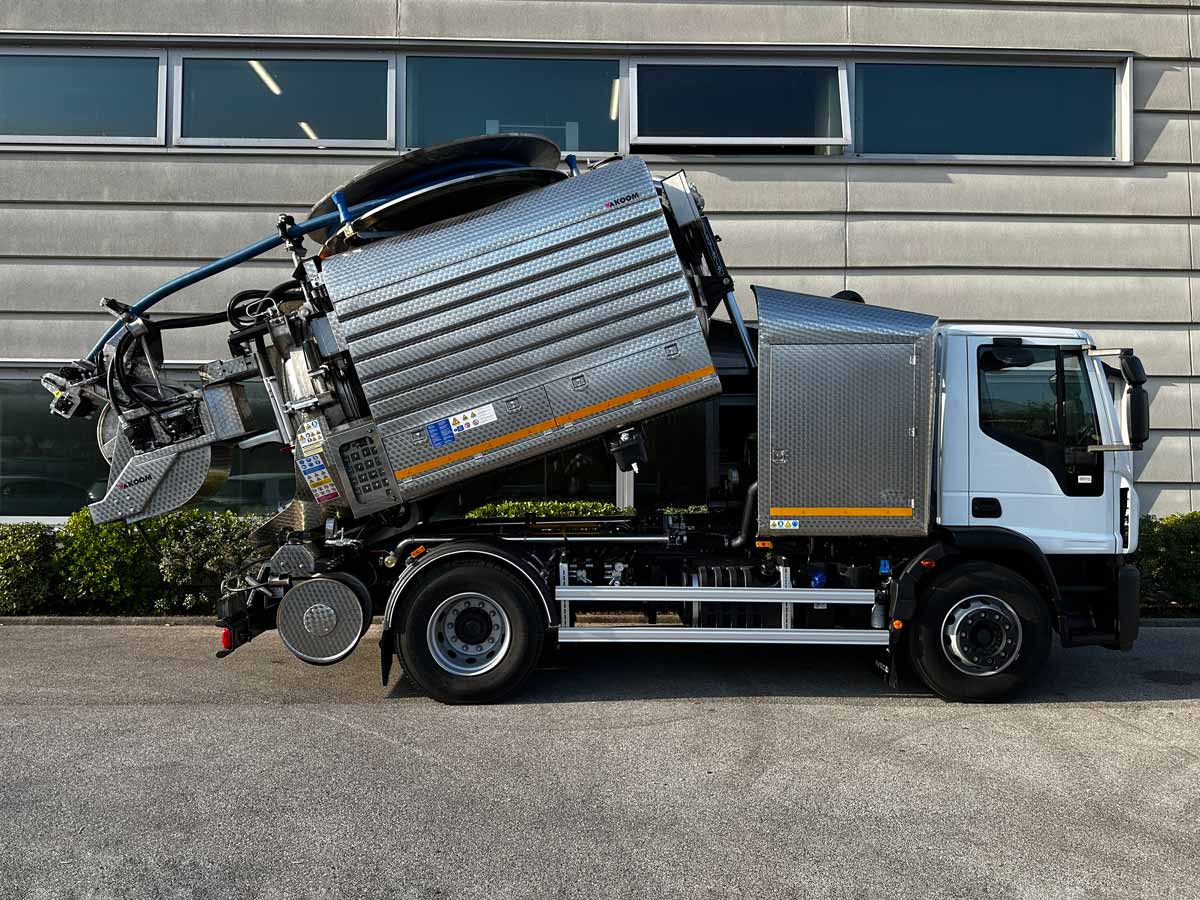

| Tank Tipping | Yes |
| Rear Bottom Automatic Closure | Yes |
| Suction Valve | Pneumatic – DN 100 (4″) |
| Discharge Valve | Pneumatic – DN 150 (6″) |
| Water Loading | 2″ |
| Tank Flushing | Yes |
Power Take-off
| Type | Full Power Split Shaft |
| Make | OMSI |
High Pressure Water Pump
| Make | Pratissoli |
| Model | MW 40 |
| Flow Rate | 211 l/min |
| Pressure | 210 bar |
Main H.P. Hose Reel
| Type | Rear 180° hydraulic swivelling with automatic self-aligning hose guide |
| Made | In stainless steel |
| Hose Length / Diameter | 80 mt hose with ø 3/4” |
Secondary H.P. Hose Reel
| Type | Hydraulic with automatic self-aligning hose guide |
| Made | In stainless steel |
| Hose Length / Diameter | 80 mt hose with ø 1/2” |
Vacuum Pump
| Type | Lobes |
| Make | Jurop |
| Model | DL300 |
| Flow Rate | 1.800 m3/h |
Suction Hose Reel
| Type | Upper – without boom |
| Made | In stainless steel |
| Hose Length / Diameter | 30 mt hose – DN100 (4″) |
Other
| Side Hose Boxes | In stailess steel, closed with opening doors |
| Wireless Remote Control | Yes |
Equipped with
| Accessories & Bodywork | Enclosure for pumps compartment with doors in stainless steel Tool box Stone box Shovel/pick holder Sign holder Hand-washing tank with soap dispenser Vacuum pump hour counter High pressure pump hour counter |
| Safety | Side protection in aluminium Rear mudguards N° 1 rear rotating beacon N° 2 rear fixed worklights N° 1 working light with retractable cable Camera with monitor in the cab |

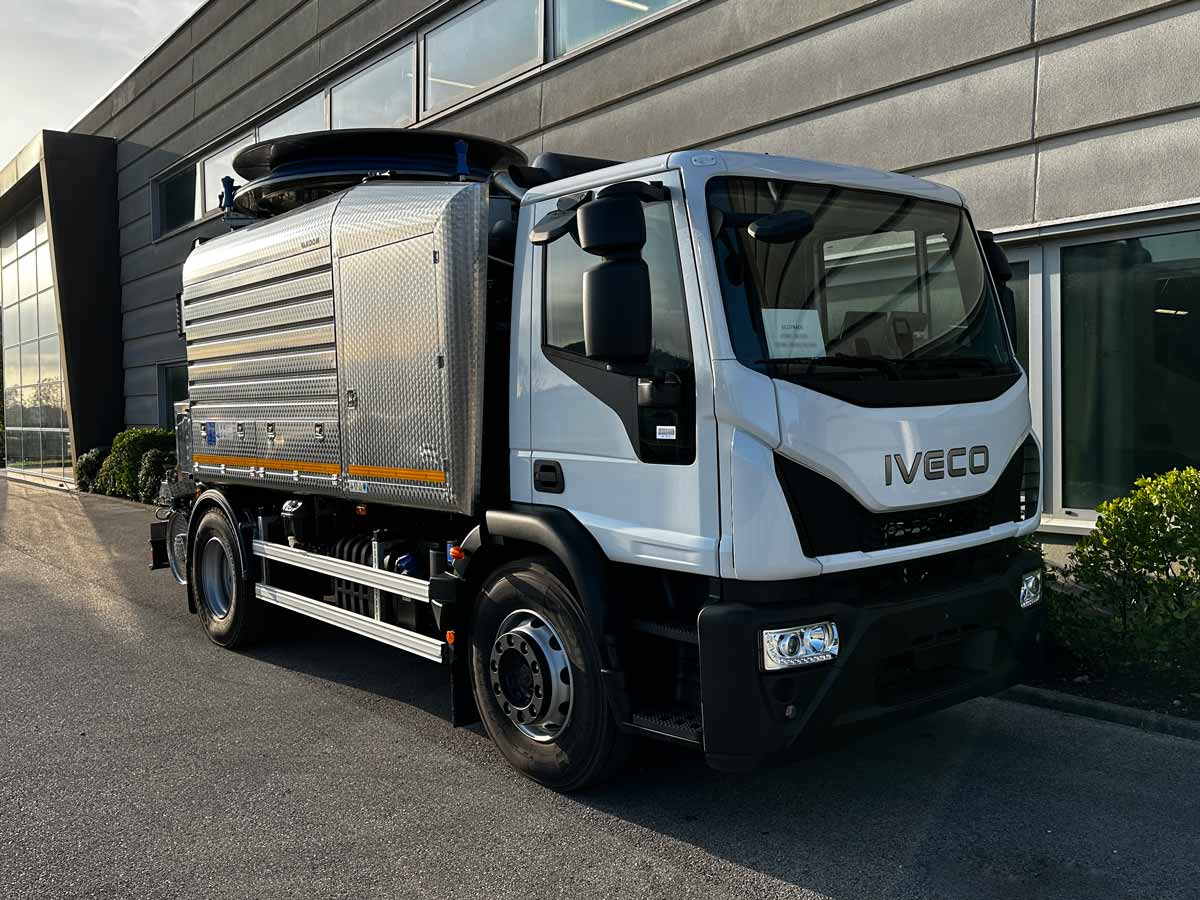

Reference Vehicle
| Make | Iveco |
| Model | EuroCargo – ML180E32/P |
| Drivetrain | 4×2 |
| Wheelbase 1st – 2nd axle | 3690 mm |
| Cab | Short |
| Engine Power | kW 237 (320 CV) |
| Fuel Type | Diesel |
| Emission Standard | Euro 6 |
| Gross Vehicle Weight (G.V.W.) | 18.000 kg |
| Gearbox | Manual (9 Gears + 1 Reverse) |
| Axle Suspension | Front parabolic Rear pneumatic |
Dimensions
| Length | 7,15 m |
| Width | 2,50 m |
| Height | 3,45 m |
