Product ID
22109
Category
Combination Sewer Cleaner
Model

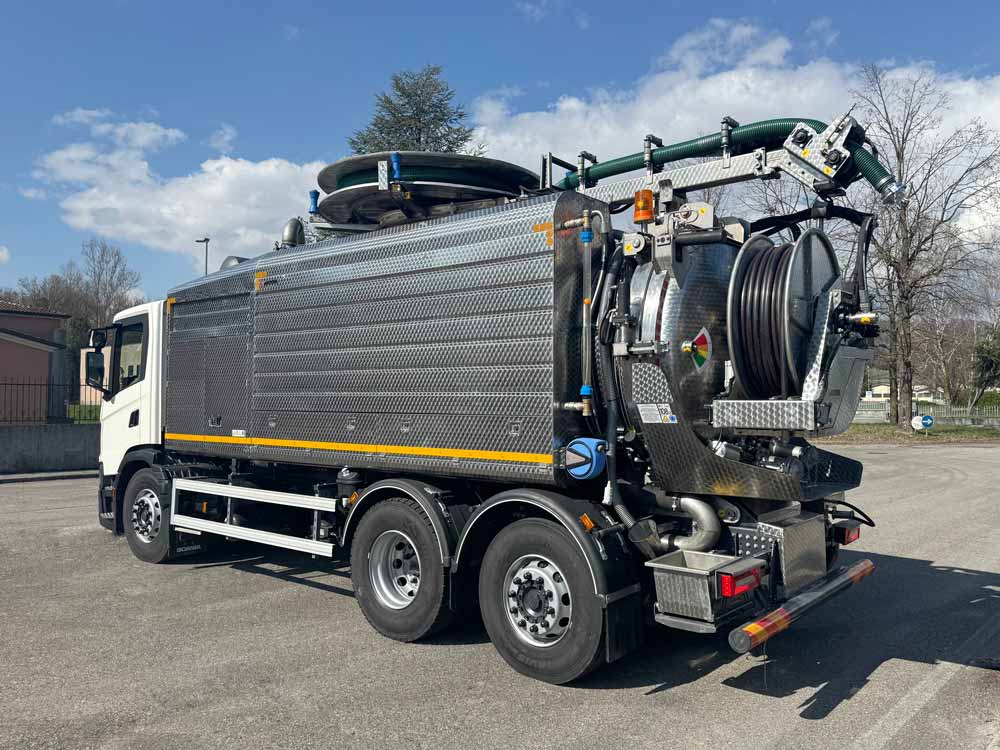

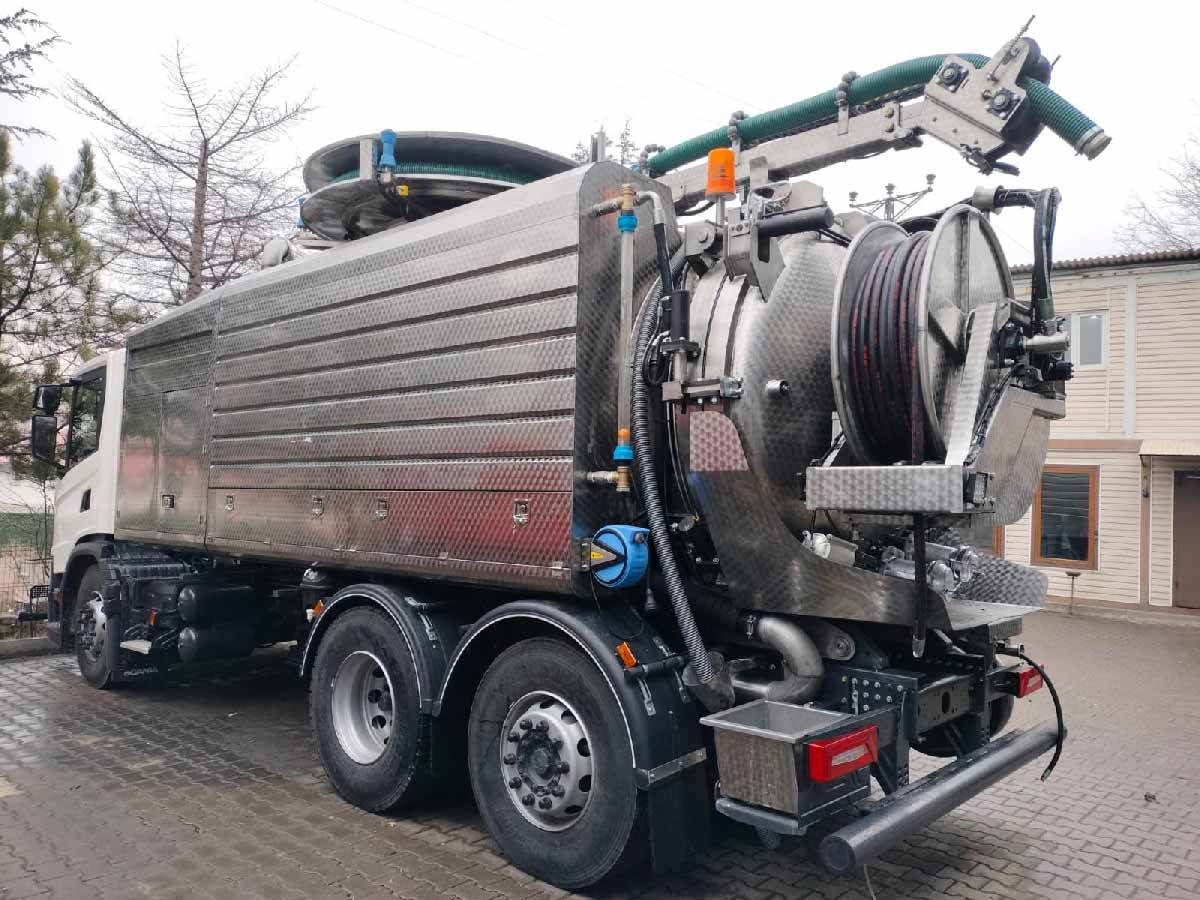

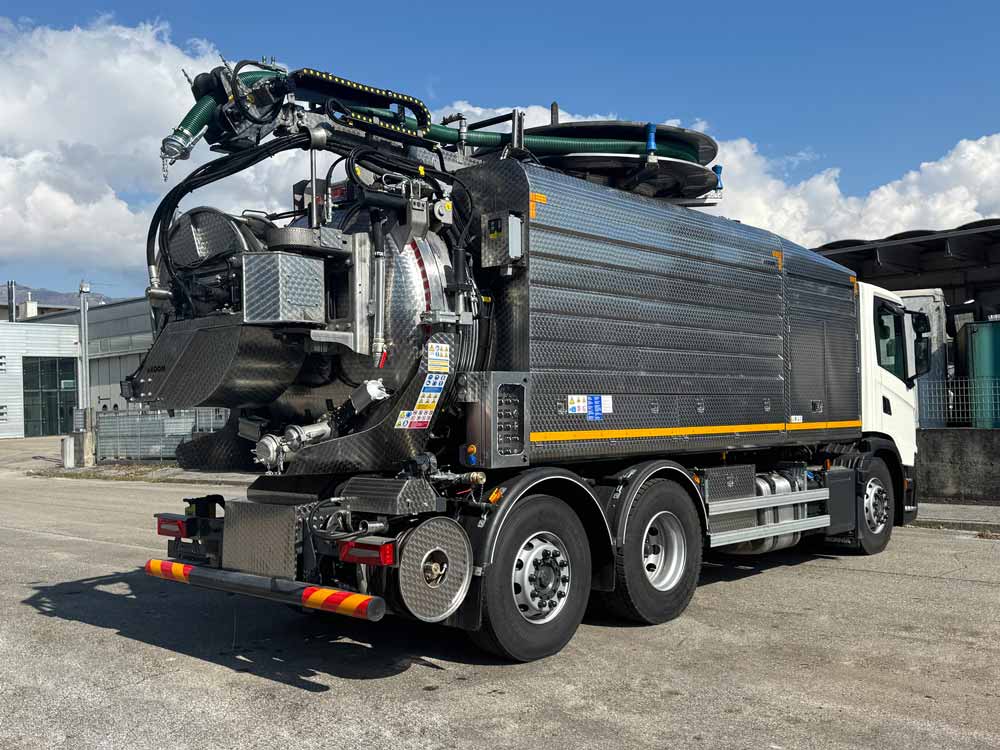

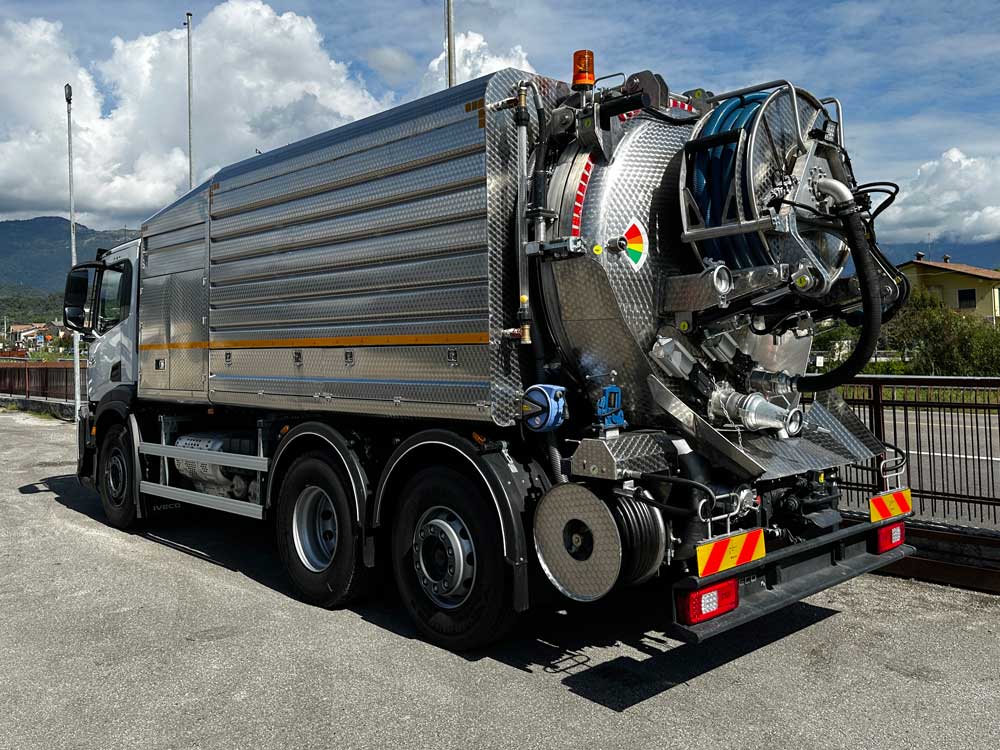

MAK COMBI 260/C
Equipment
| Make | Vakoom |
| Type | Combination Sewer Cleaner |
Tank
| Made | In AISI 304 stainless steel |
| Version | With stainless steel tanks for fresh water |
| Sludge Capacity | 10.000 litres |
| Water Capacity | 5.000 litres |
| Tank Tipping | Yes |
| Rear Bottom Automatic Closure | Yes |
| Suction Valve | Pneumatic – DN 100 (4″) |
| Discharge Valve | Pneumatic – DN 150 (6″) |
| Water Loading | 2″ |
| Tank Flushing | Yes |
Power Take-off
| Type | Full Power Split Shaft |
| Make | OMSI |
High Pressure Water Pump
| Make | Pratissoli |
| Model | MK2-55 |
| Flow Rate | 290 l/min |
| Pressure | 200 bar |
Main H.P. Hose Reel

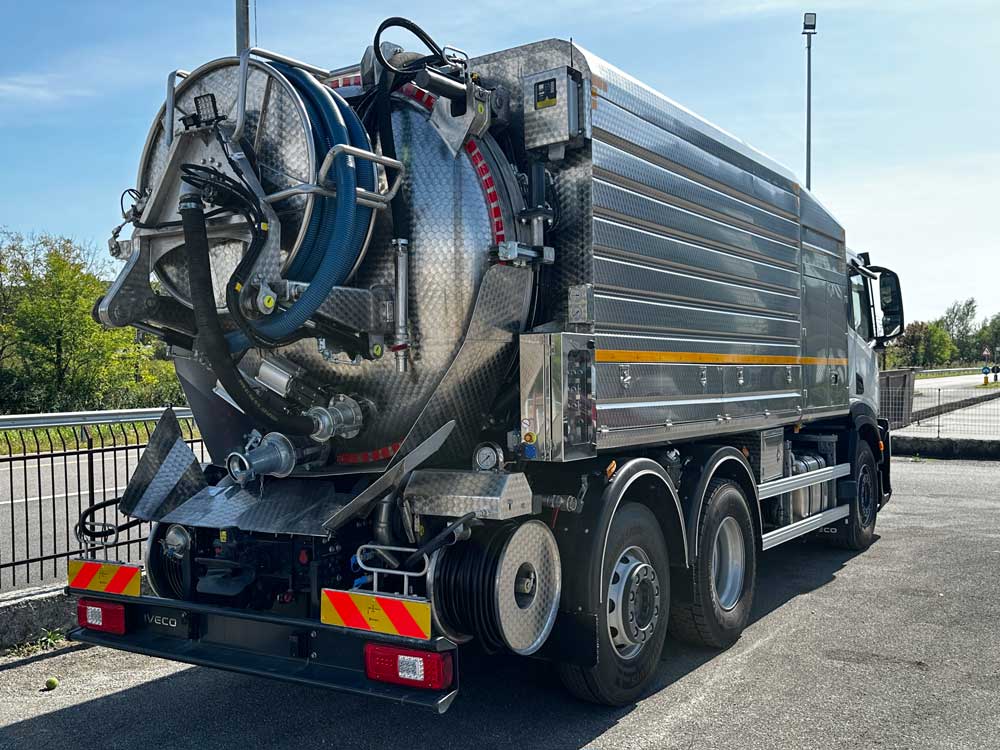

| Type | Rear 180° hydraulic swivelling with automatic self-aligning hose guide |
| Made | In stainless steel |
| Hose Length / Diameter | 120 mt hose with ø 1” |
Secondary H.P. Hose Reel
| Type | Hydraulic with automatic self-aligning hose guide |
| Made | In stainless steel |
| Hose Length / Diameter | 80 mt hose with ø 1/2” |
Vacuum Pump
| Type | Lobes |
| Make | Jurop |
| Model | PVT400 |
| Flow Rate | 2.600 m3/h |
Suction Hose Reel

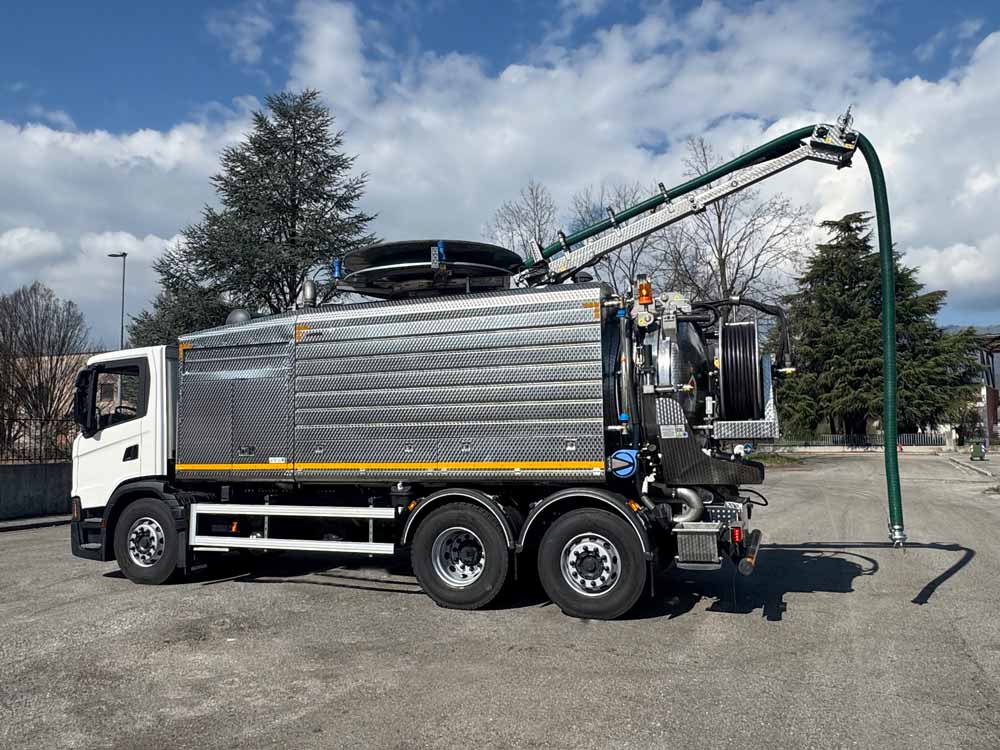

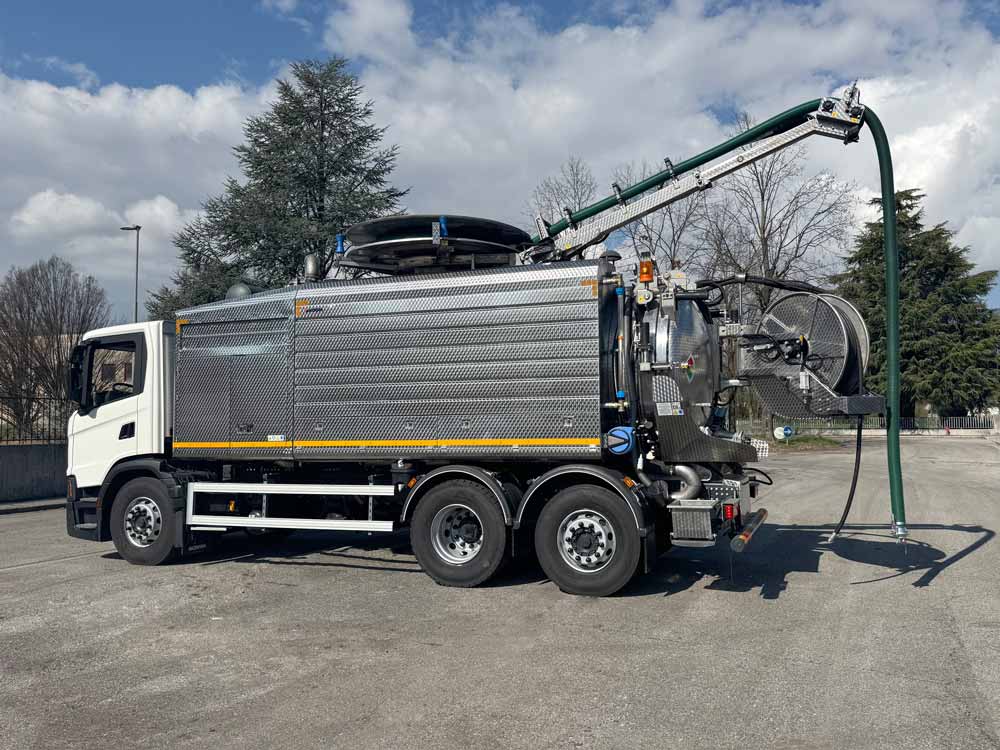

| Type | Upper – with telescopic boom |
| Made | In stainless steel |
| Hose Length / Diameter | 30 mt hose – DN100 (4″) |
Other
| Side Hose Boxes | In stailess steel, closed with opening doors |
| Wireless Remote Control | Yes |
Equipped with
| Accessories & Bodywork | Enclosure for pumps compartment with doors in stainless steel Tool box Stone box Shovel/pick holder Sign holder Hand-washing tank with soap dispenser Vacuum pump hour counter High pressure pump hour counter |
| Safety | Side protection in aluminium Rear mudguards N° 1 rear rotating beacon N° 2 rear fixed worklights N° 1 working light with retractable cable Camera with monitor in the cab |
Reference Vehicle

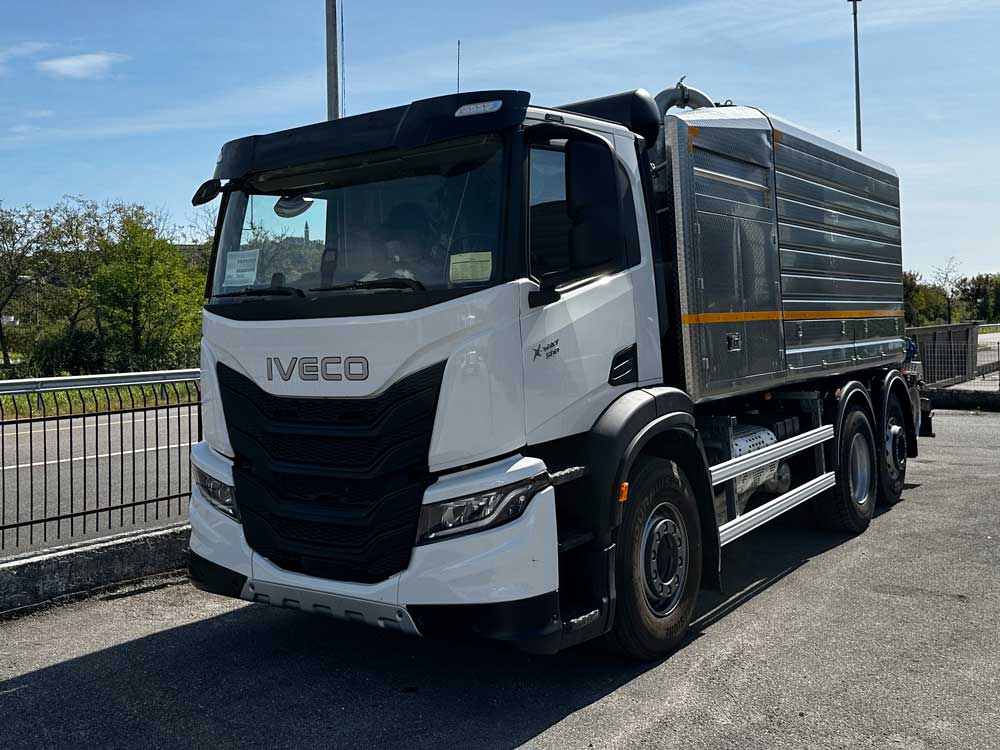

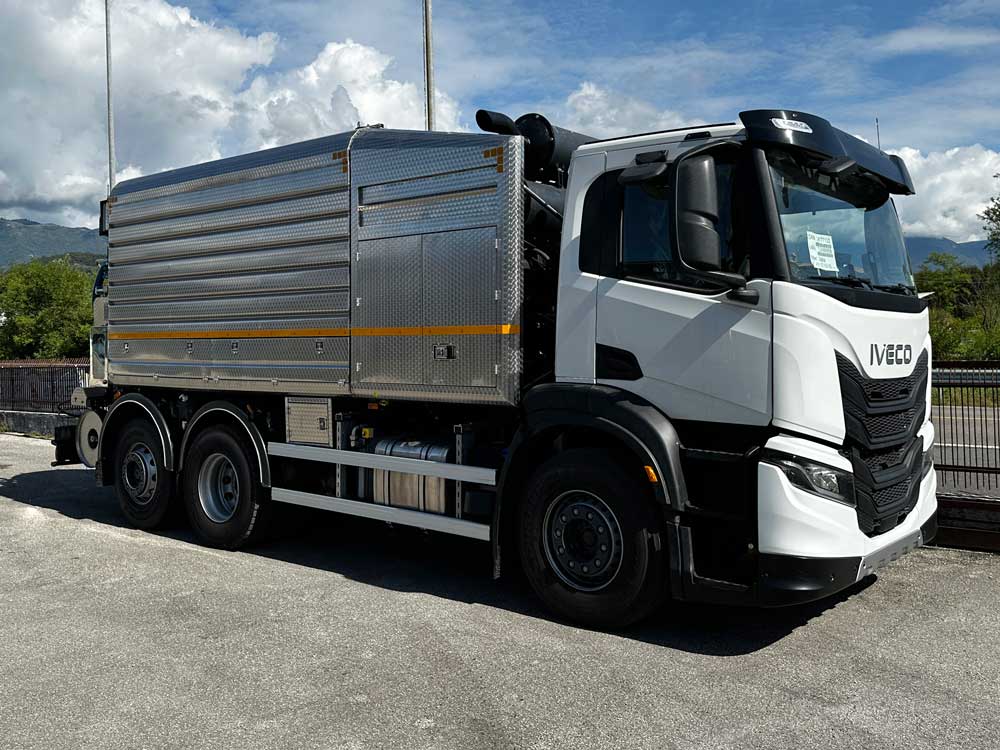

| Make | Iveco |
| Model | S-WAY AD260S48Y/PS |
| Drivetrain | 6×2 |
| Wheelbase 1st – 2nd axle | 4200 mm |
| Cab | Short |
| Engine Power | kW 356 (480 CV) |
| Fuel Type | Diesel |
| Emission Standard | Euro 6 |
| Gross Vehicle Weight (G.V.W.) | 26.000 kg |
| Gearbox | Manual (16 Gear + 2 Reverse) |
| Axle Suspension | Front parabolic Rear pneumatic |
Dimensions
| Length | 9,20 m |
| Width | 2,50 m |
| Height | 3,75 m |
